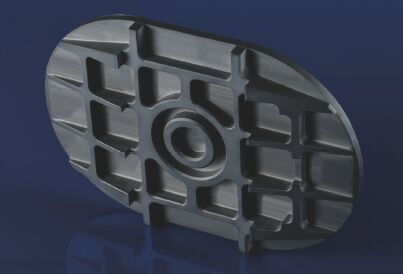

Pressureless Sintered Silicon Carbide Parts with High Thermal Conductivity and Excellent Erosion Resistance

Ich bin online Chat Jetzt

Pressureless Sintered Silicon Carbide Parts with High Thermal Conductivity and Excellent Erosion Resistance

Pressureless Sintered Silicon Carbide Parts with High Thermal Conductivity and Excellent Erosion Resistance
Pressureless Sintered Silicon Carbide Parts with High Thermal Conductivity and Excellent Erosion Resistance Pressureless Sintered Silicon Carbide Parts with High Thermal Conductivity and Excellent Erosion Resistance Pressureless Sintered Silicon Carbide Parts with High Thermal Conductivity and Excellent Erosion Resistance Pressureless Sintered Silicon Carbide Parts with High Thermal Conductivity and Excellent Erosion Resistance

Großes Bild :  Pressureless Sintered Silicon Carbide Parts with High Thermal Conductivity and Excellent Erosion Resistance

Produktdetails:
Herkunftsort: China
Markenname: ZG
Zertifizierung: CE
Modellnummer: MS
Zahlung und Versand AGB:
Min Bestellmenge: 1 Stk
Preis: 10USD/PC
Verpackung Informationen: Starke Holzkiste für den globalen Versand
Lieferzeit: 5-8 Werktage
Zahlungsbedingungen: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Versorgungsmaterial-Fähigkeit: 1000 Stück

Pressureless Sintered Silicon Carbide Parts with High Thermal Conductivity and Excellent Erosion Resistance

Beschreibung
Hervorheben:

Pressureless Sintered Silicon Carbide Parts

,

High Thermal Conductivity SiC Components

,

Excellent Erosion Resistance SiC Ceramic Parts

Silicon Carbide (SiC) Parts
Silicon carbide (SiC) shares many characteristics with diamond—it is one of the lightest, hardest, and strongest technical ceramic materials. It possesses excellent thermal conductivity, acid resistance, and low thermal expansion. Silicon carbide is an excellent material when physical wear is a significant consideration, due to its exceptional erosion and abrasion resistance. This makes it suitable for various industrial applications including nozzles, sandblasting nozzles, and cyclone separator components.
Pressureless Sintered Silicon Carbide Ceramics
Mechanical Properties
Property Unit Silicon Carbide
Density g/cm³ 3.15
Vickers Hardness Hv0.5 2650
Flexural Strength MPa 450
Compressive Strength MPa 2650
Elastic Modulus GPa 430
Fracture Toughness MPa·m¹/² 4
Poisson's Ratio 0.14
Young's Modulus GPa 430
Silicon Carbide Raw Material Purity % 99
Thermal Properties
Property Unit Silicon Carbide
Thermal Conductivity at 25°C W/mK 110
Melting Point °C 2800
Specific Heat J/g·K 0.8
Linear Expansion Coefficient 10⁻⁶/K 4
Electrical Characteristics
Property Unit Silicon Carbide
Dielectric Constant 1MHz 10
Breakdown Voltage V/cm 1×10⁶
Dielectric Loss 1MHz 0.001
Resistivity Ω·cm 10²-10⁶
Pressureless Sintered Silicon Carbide Parts with High Thermal Conductivity and Excellent Erosion Resistance 0
